GKB Combinator

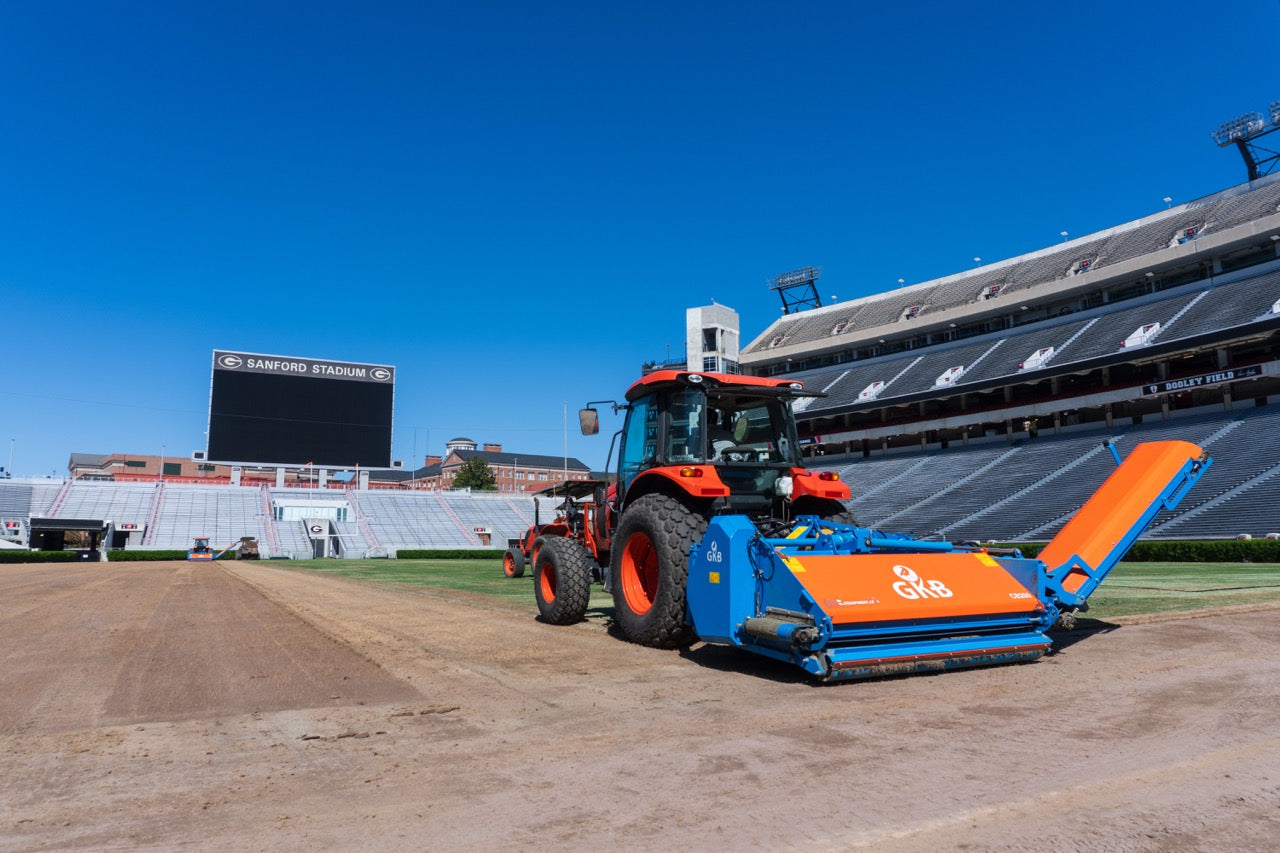

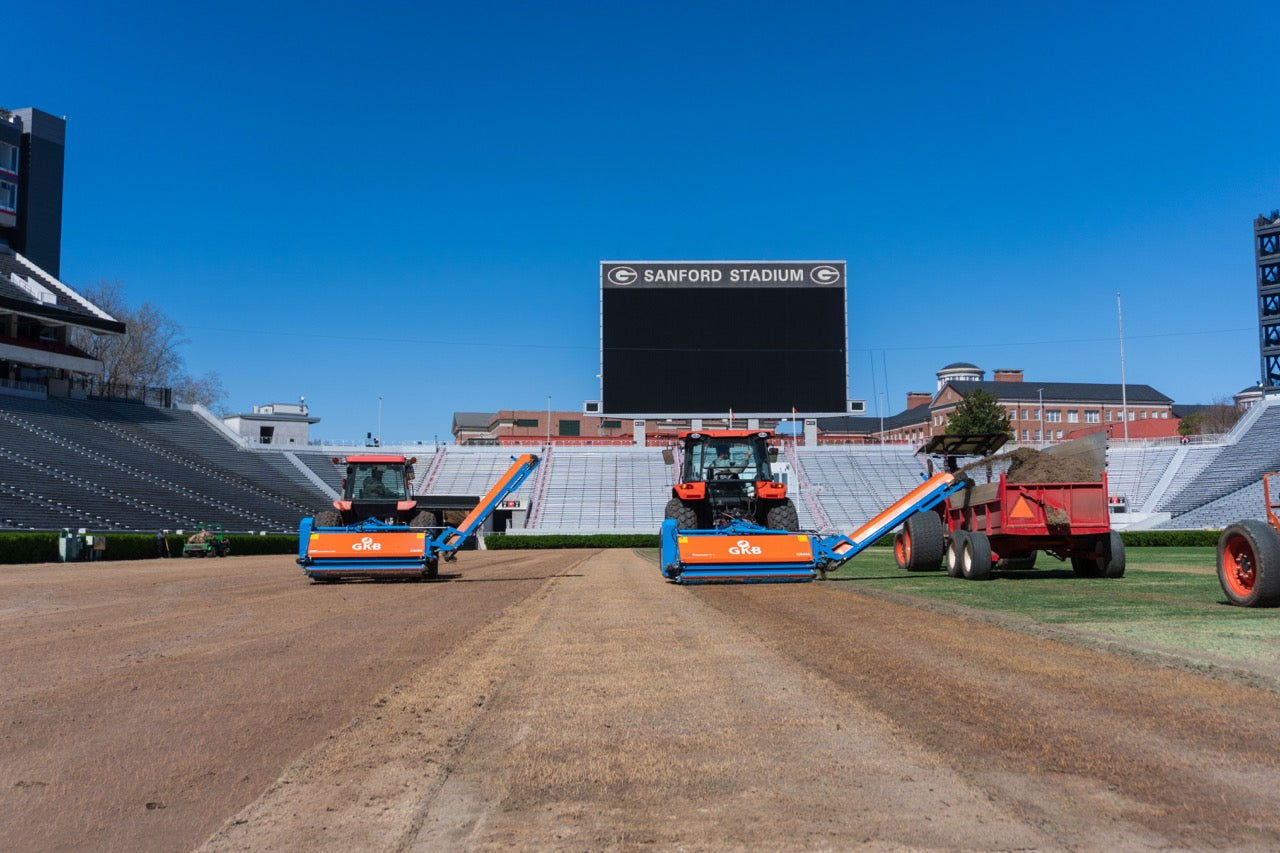

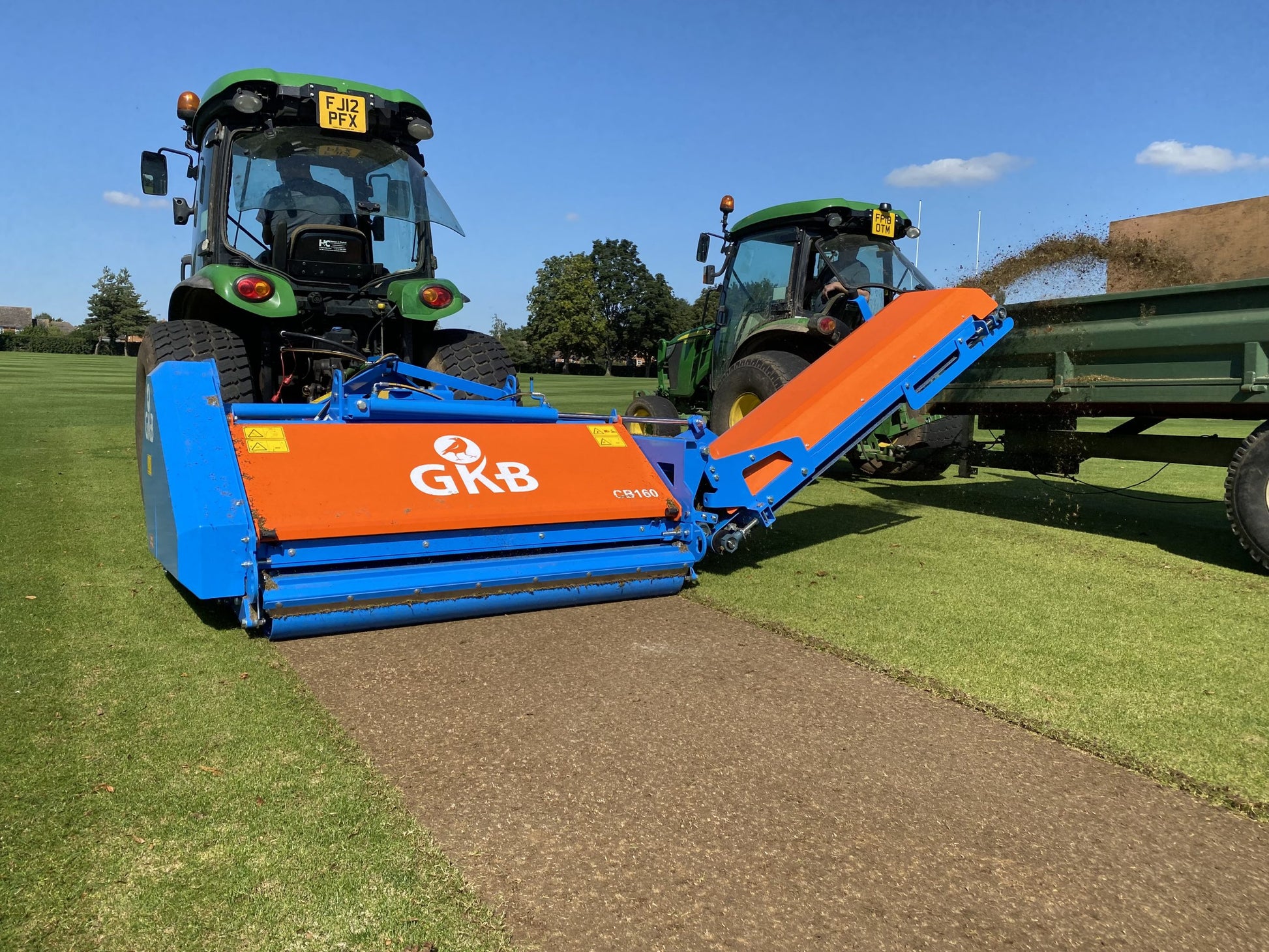

GKB Combinator – The reliable fraise mower for surface removal

Developed in the late 1990’s, the GKB Combinator has established itself as one of the most reliable fraise mowers available on the market. Whether you simply want to scarify to combat annual meadow grass or remove up to 5cm (1.9”) from the surface, the Combinator provides an effective solution without affecting the root network of your surface profile.

Quality Build, Quality Results

The high-quality steel housing of the GKB Combinator provides durability, while the unique patented GKB CombiRotor which can be equipped with various knife and blade options delivers robustness and efficiency. To further improve the cleanliness of finish, the cross conveyor on the re-designed Combinator has been moved closer to both the rotor and blade tips, to cleanly transfer more of the removed material up and away into an awaiting collector. The elevator is also partly covered to protect the material from wind as it makes its way to the trailer.

The drive system on the re-designed model has been enhanced and features a solid direct drive from the gearbox over a PTO-style yolk. Inside, a stainless-steel hood protects against abrasive sands and delivers an improved flow of material.

Combinator Technical Specification

· 4 working widths available

· 3 different types of blades available, including those for hybrid turf

· ‘Hold down plate’ prevents damage to stitched pitches

· Easily adjust working depth with pendulum system of the front and rear rollers

· Robust, covered conveyor belt, can withstand heavy loads

· Unique optional adjustable infill brush

· Can be connected with a three-point coupling (cat I or II)
