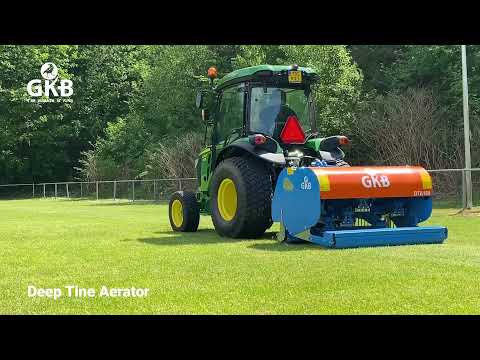

GKB Deep Tine Aerator

Deep Tine Aerator – Eliminate Soil Compaction

Deep aeration stimulates root growth, thus strengthening your turf and providing the means for optimal plant and soil health. The Deep Tine Aerator from GKB delivers precision penetration down to depths of 400mm for intensive aeration, breaking through compaction on even the hardest or toughest surfaces.

How does the DTA work?

The tines of the DTA repeatedly pierce the ground, creating a hole at a designated spacing. Breaking through any compaction, the aerated ground will therefore be more permeable for moisture, oxygen and nutrients to provide better root and shoot growth.

Sustainable and efficient aeration

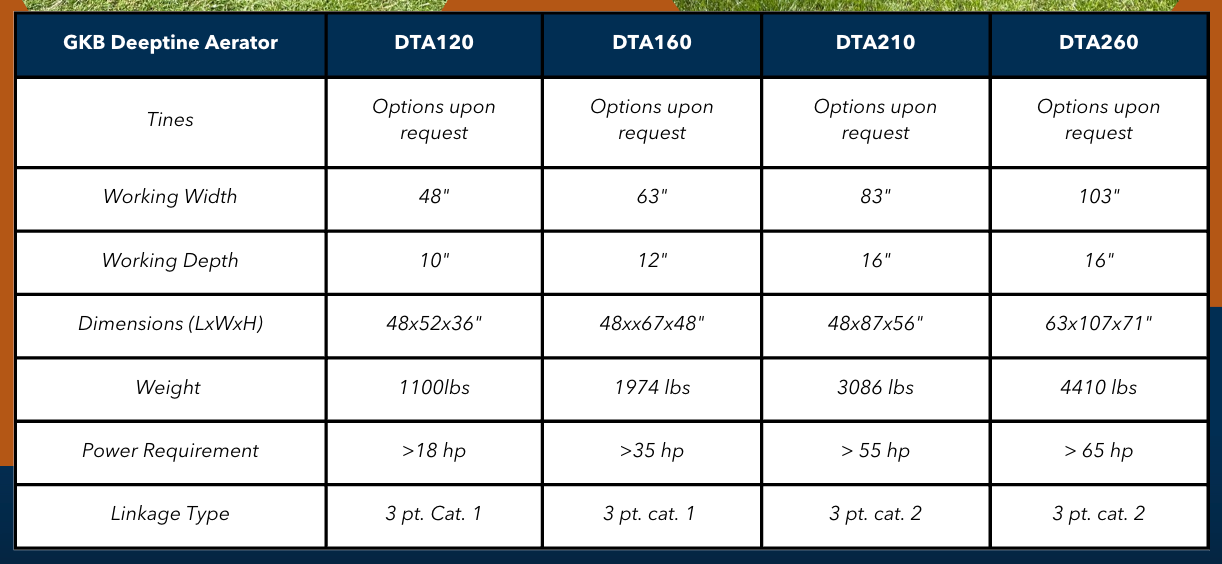

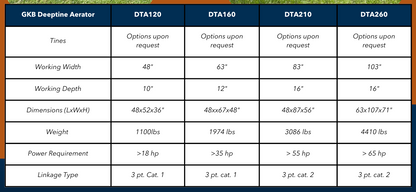

Precision engineered and built for durability and strength, the GKB DTA is available in four working widths from 120cm (47”) to 260cm (102”) meaning there’s a model suited for smaller jobs on golf greens right up to large scale renovations on winter sports surfaces. Smaller models like the DTA 120 offer a maximum working depth of 250mm, with the depth of the larger DTA 210 and DTA 260 models easily set via simple hydraulic height adjustment. The heave angle of up to 25 degrees is also quick and simple to change.

Features of the DTA

· Extremely durable

· Speed of the tines is easy to adjust (3 gears)

· Hydraulic height adjustment for setting penetration depth (DTA210 and DTA260)

· Quick tine change due to the unique mounting system

· Heave angle up to 25 degrees

· Single person operation
